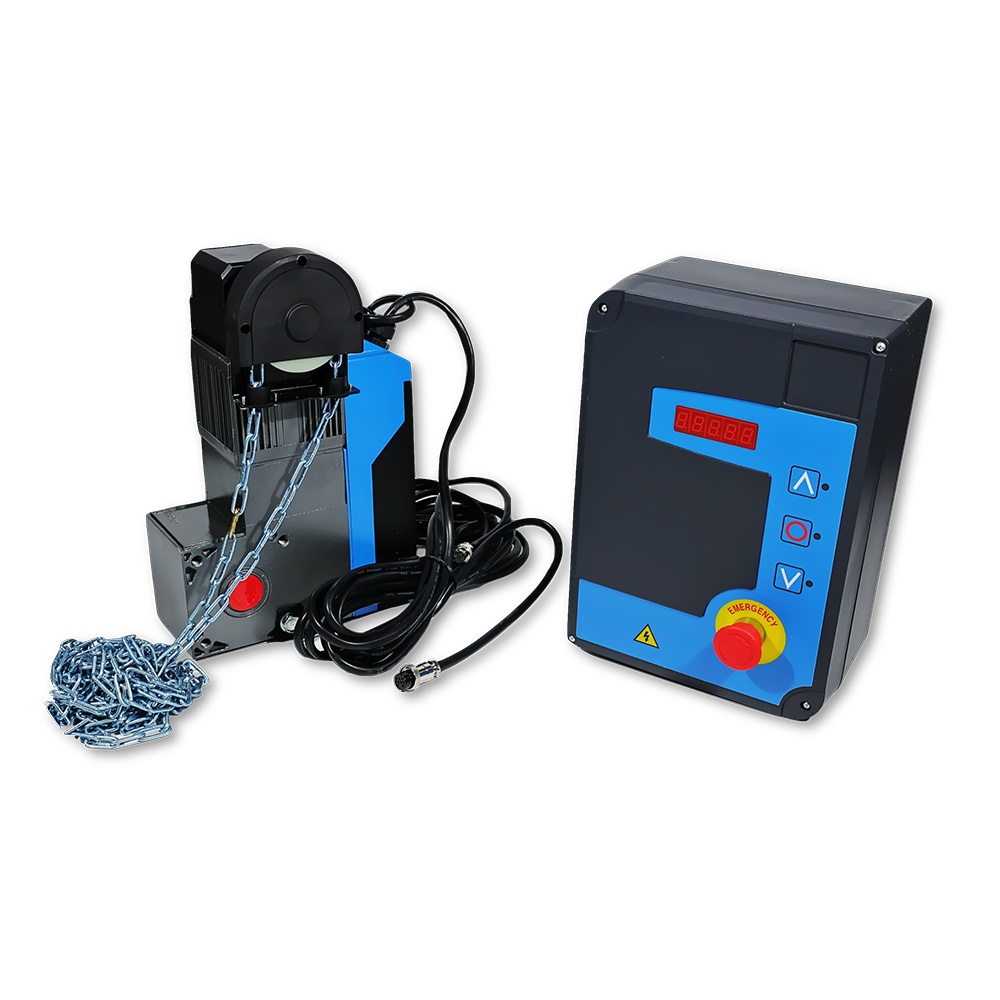

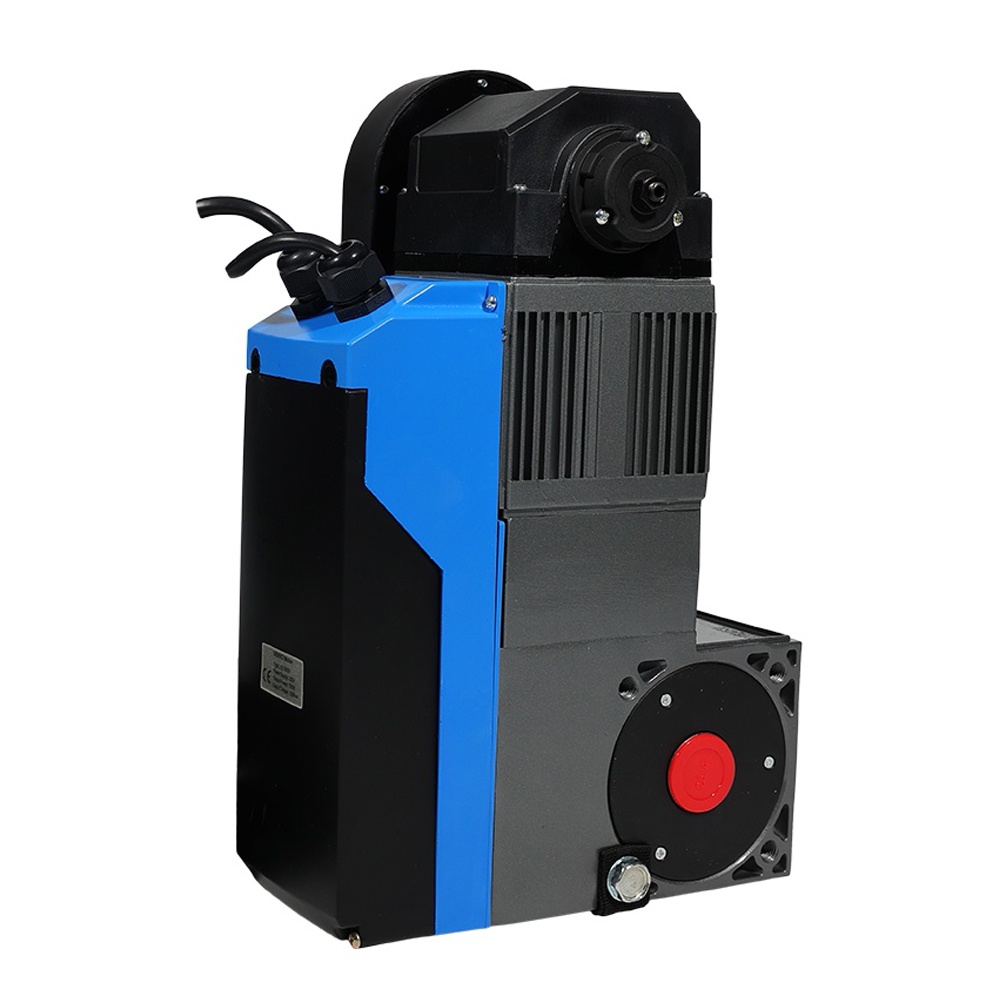

KG50SF/KG100SF
Features：
Servo motor, powerful and efficient.
Soft start and soft stop.
Build-in encoder, electronic limit switch.
LCD display indicate working situation.
Running speed is adjustable.
Overload & overheat protection.
Automatic close function.
Plug and play, easy wiring.
Wiring terminals for alarm lamp, infrared photocell, etc.
Technical data
| Model | KG50SF | KG100SF |
| Power supply | 220V | 380V |
| Output torque | 50N.m | 100N.m |
| Output speed | 20-55r/min | 20r/min |
| Output shaft aperture | Φ25.4mm | Φ25.4mm |
| Max.travel distance | 28 Cycles | 28 Cycles |
| Max.dool size | ≤25m2 | ≤32m2 |
| Work duty | S2 10min | S2 10min |
| Ambient temperature | -20℃~+50℃ | -20℃~+50℃ |

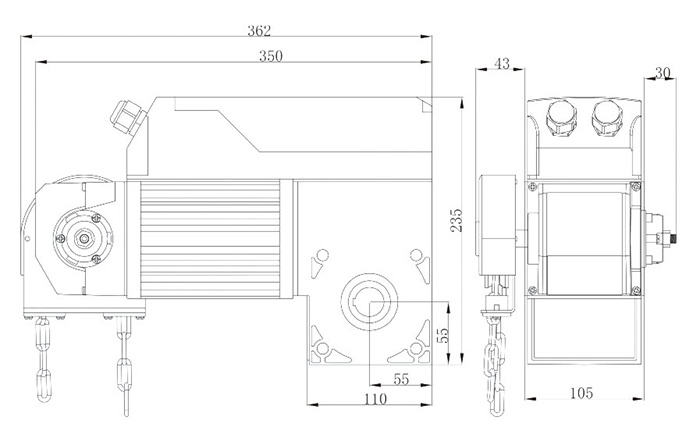

| Dimensions | 362*235*105mm | 362*235*105mm |
